Daytona

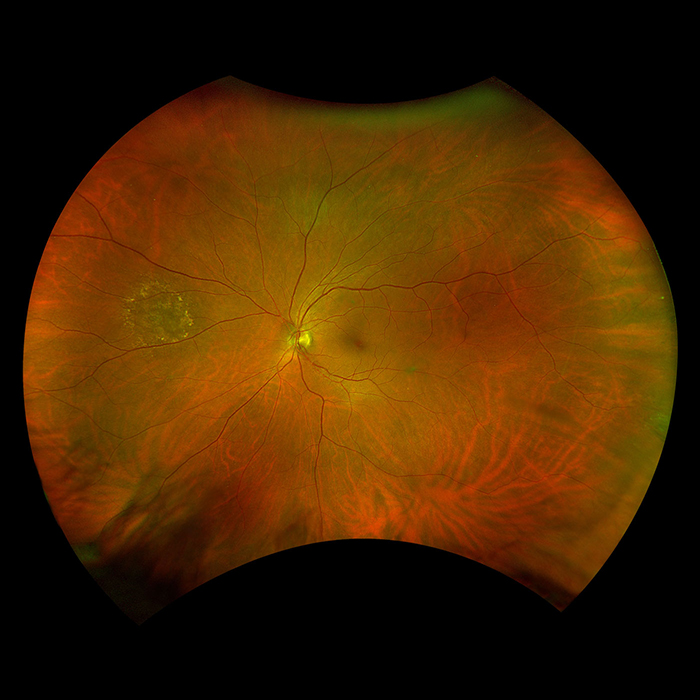

Daytona produces a 200° single-capture optomap retinal image of unrivaled clarity in less than ½ second. This fast, easy, patient friendly, ultra-widefield imaging technology was designed for healthy eye screening and has been shown to improve practice flow and patient engagement.
Daytona provides eyecare professionals with UWF digital images of 200 degrees or up to 82% of the retina in a single, non-contact optomap image. In addition, the Daytona device comes with the OptosAdvance™ browser-based image review software, which allows for simple documentation, monitoring and referral processing to assist in patient management and improved patient flow.
Technical Specifications
| Image Modalities |
optomap color and optomap (red and green laser): optomap af (green laser): |
|---|---|
| Resolution |
optomap plus: 14 μm |
| Wavelengths |
Red laser: 635 nm Green laser: 532 nm |
| Exposure Time |
Less than 0.4 seconds |
| Footprint |
Width: 440 mm/18 in Depth: 500 mm/20 in Height: 795 mm/32 in |
| Weight |
28 kg/62 lbs |
| Table Space Requirements |
Width: 700 mm/28 in Depth: 550 mm/22 in |
| Colors |
White body with aqua trim White body with blue trim White body with silver trim White body with red trim |
| Laser Class |
Laser safety class-1 following EN60825 |
| System Voltage |
US: 100-120V at 50/60Hz 3a |
| Power Consumption |
Max. 300VA |
Product Demonstration Video
Daytona Family Device Footprint
