Printing Images: OptosAdvance

OptosAdvance provides an easy-to-use method for printing images from your patient studies. You can print the patient study currently loaded in the image viewing area, print one image, or print all viewports.

1. If you want to print a single viewport, select the desired viewport before proceeding

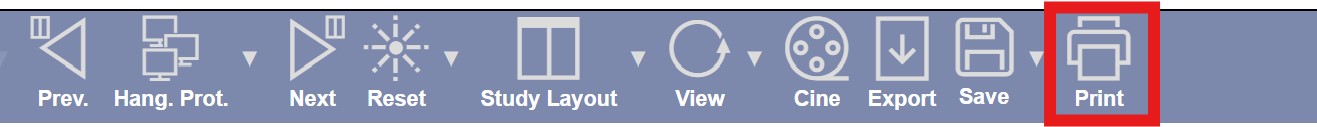

2. Select Print from the toolbar.

3. Select from the options provided:
   • Save as one of the following:
   • Viewport - the window selected prior to selecting the Print option
   • Display - the image(s) that are on the screen
   • Current Image - the image that is selected
   • Current Series - all images of one modality type
   • Current Study - all images from the study
   • Key Images
   • Select the preferred Resolution 100%, 200%, 300%, 400%.
   • Template - Do not modify; ensure Custom is selected
   • Choose Titles option appropriate for your use. This option will keep/remove information (Name, ID, DOB, etc.) from the image(s) depending on the selection.
   • All, Minimal, Light or None
   • A timed sequence (e.g., FA or ICG) will require ‘All’ selected

4. At bottom left of the screen select Print.

5. When done, select Close at the top right of the screen.
